The authoring GUI

stillsmith dev


Authoring GUI	`http://localhost:5173/__stillsmith/author`
Scene browser	`http://localhost:5173/__stillsmith/`

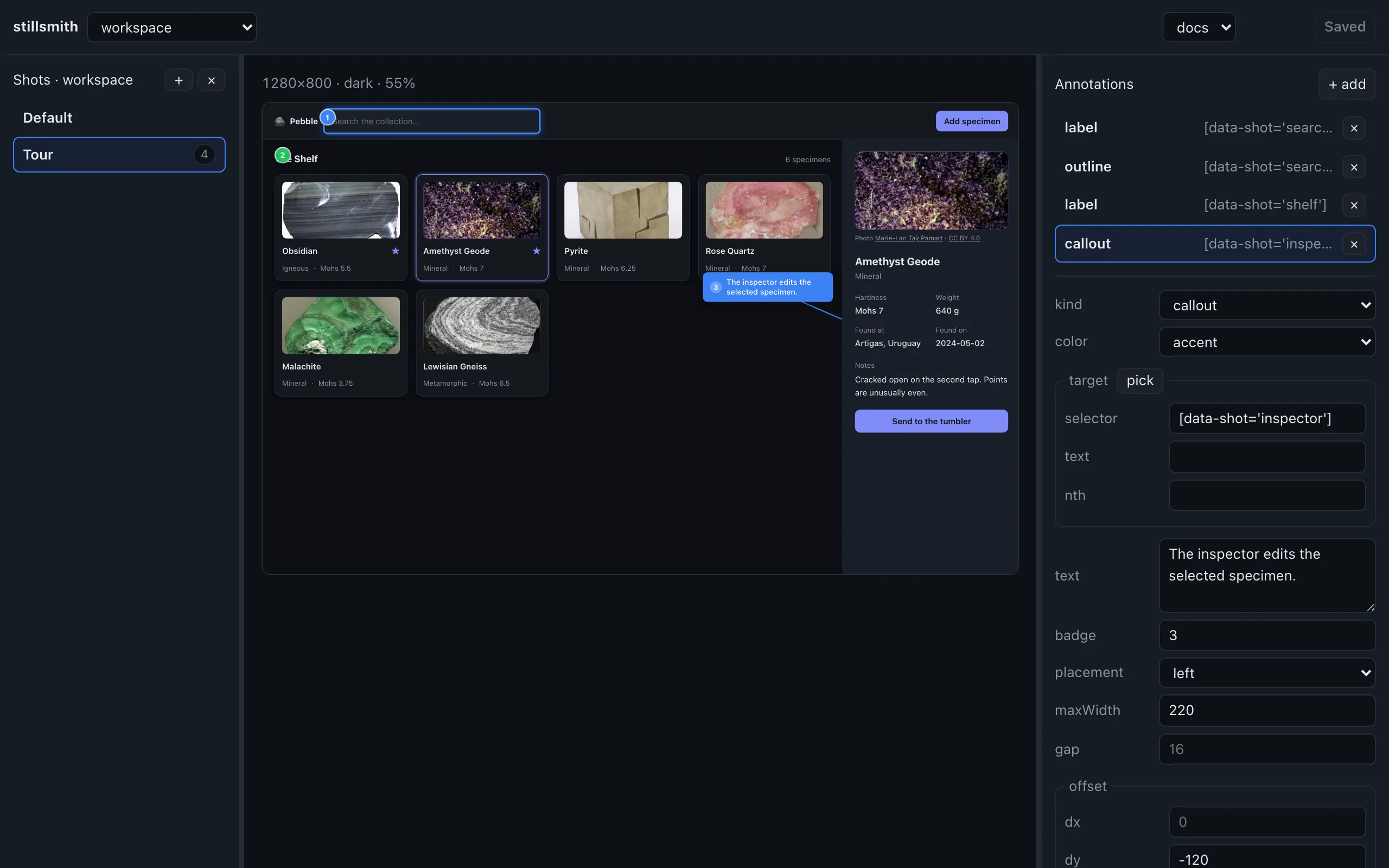

stillsmith's authoring GUI, editing an annotation on the Pebble workspace scene

The loop

Pick a scene, a shot, and a preset. The scene renders live in an iframe at the preset’s true pixel size, scaled down to fit but never reflowed, so what you see is the layout that will ship.

Add an annotation, hit pick, then click the element you mean. stillsmith infers the most robust target it can and tells you how good it is:

Quality	Meaning
`stable`	A `data-shot`, a stable id, or a `data-testid`. Survives re-renders and preset changes.
`ok`	Matched by text. Works, but add a `data-shot`.
`brittle`	An absolute rect. Will break the moment anything moves.

It deliberately skips framework-generated ids (React’s useId, react-aria). They look like stable selectors but change on every render, so an annotation built on one would silently fail to resolve at capture time.

Drag to position

Every annotation is grabbable right in the preview, and the cursor turns into a grab handle over anything you can move. Pick up an outline box, a highlight, a callout, a numbered label, or an arrowhead and drop it where you want it. The drag writes straight into that annotation’s offset, the same { dx, dy } you could type into the fields by hand, and each kind moves the same thing it moves for a typed offset.

The offset panel updates live as you drag, so you can grab an annotation to get close and then nudge the last pixel or two by keyboard.

The preview is not a mock

It runs the same drawing engine against the iframe’s document that runs against the page at capture time, so what you nudge here is what comes out of the shot. There’s no second implementation to drift.

Save writes TypeScript

Saving edits your .scene.tsx in place:

{
  kind: "callout",
  target: { selector: "[data-shot='inspector']" },
  text: "The inspector edits the selected specimen.",
  placement: "left",
  offset: { dy: -120 },
  offset: { dy: -64 },
},

That’s the whole diff from nudging a callout in the GUI. stillsmith edits only the properties you changed, prints them compactly, and runs your formatter (Biome or Prettier), so a visual tweak produces a diff a reviewer can read rather than a reformatted file.
